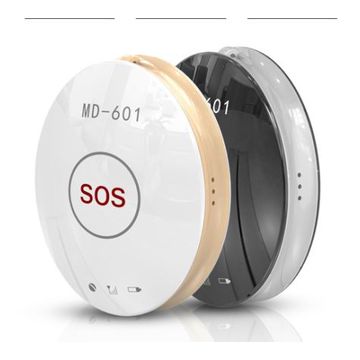

This mini GPS tracker is designed for personnel remote management and security monitoring
Multiple positioning mode: GPS+LBS+AGPS+Wi-Fi
Automatic time update
Track: user's specific location can be inquired through app or computer
Geo-fence: designate an area on the map by setting the device as the center point and the alarm will be triggered off immediately once the user of the device goes into or out of this area
Playback: moving routes of the device in the past 3 months anytime and anywhere stores in its memory
Reward: reward is given for its preference by guardians
Intelligent power saving: device turns off/on the GPS and data upload in the time range specified through app
Applications:
Personal tracking
Fleet/group vehicle tracking
Asset security/tracking
Specifications:
Location mode GPS+AGPS+LBS+Wi-Fi (optional)
Chipset MT6261D/Ublox 7020
GPS/RF MTK3337/RDA6625E
Frequency 850/900/1800/1950MHz
Memory 32M flash
PCBA size 20*35*4.5mm (PCBA+GPS)
GPRS class12
GPS signal L1,1575.42MHz C/A code
GPS channel 20 channels
GPS sensitivity Tracking sensitivity: -159dBm
Acquisition sensitivity: -143dBm
GPS antenna Intel high sensitive 18*18 ceramic passive antenna
GPS accuracy 5-10m
GMS accuracy 50-200m
GSM antenna PIFA
MIC/speaker 4015/0916
Sensor 3D G-sensor
Material plastic case
Humidity 5%-95%RH
I/O micro 5 pins
Mini standby power <0.5mA
SIM card nana SIM
Waterproof ID65
